Wood warping is defined as the physical deformation of wood caused by uneven moisture absorption and release across its structure. Water damage causes wood warping because wood is hygroscopic, meaning it constantly absorbs and releases moisture from its environment. When water exposure is uneven, one side of a board swells faster than the other, creating internal stress that bends, cups, or buckles the wood. Understanding this process, including key concepts like Equilibrium Moisture Content (EMC) and the Fiber Saturation Point (FSP), gives homeowners the knowledge to act fast and protect their floors before permanent damage sets in.
Why does water damage cause wood warping?
Wood warps because its cellulose fibers absorb water unevenly, and that uneven swelling creates physical stress the wood cannot hold. The science behind this is called wood anisotropy. Wood is not uniform in structure, so it swells at different rates depending on the grain direction. Tangential expansion (across the growth rings) is roughly twice the rate of radial expansion (through the rings). That directional difference is why a flat board curves rather than simply growing larger.
The Fiber Saturation Point (FSP) sits at roughly 28–30% moisture content. Below that threshold, wood is dimensionally stable. Above it, cell walls are fully saturated and the wood begins to deform structurally. Safe EMC for hardwood sits below 12–13%. Once moisture content climbs above 15%, visible cupping begins. At 20%, the wood has reached FSP and severe structural damage follows. Those numbers explain why a slow leak under a dishwasher can destroy a hardwood floor over weeks without a single visible puddle.
How moisture interacts with wood cells to cause expansion
Wood’s cellulose fibers contain hydroxyl groups that act as chemical bonding sites for water molecules. When water enters wood, hydrogen bonds form between those hydroxyl groups and water molecules, pulling water directly into the cell walls. The cell walls swell as a result. This is not surface absorption. The water becomes part of the wood’s molecular structure.
The key mechanics behind warping break down into four processes:
- Differential swelling: Cell walls expand primarily across the grain, not along it. A board that gets wet on one face swells on that face while the dry face stays stable, bending the board toward the dry side.
- Internal stress buildup: When swelling exceeds the wood’s elastic limit, the fibers undergo plastic deformation. That means the shape change becomes permanent, even after the wood dries.
- Hysteresis lag: Wood swells quickly when wet but dries far more slowly. A floor that looks dry on the surface can still hold significant internal moisture for days or weeks.
- Anisotropic expansion: Because tangential and radial expansion rates differ, the wood twists and curves rather than expanding uniformly in all directions.
Pro Tip: Use a pin-type moisture meter to check wood at multiple depths, not just the surface. A reading below 12% at depth confirms the wood is genuinely dry, not just surface-dry.
The hysteresis effect is the detail most homeowners miss. Surface dryness is not internal dryness. Acting on the assumption that dry-looking wood is structurally stable leads directly to premature sanding and refinishing, which causes a second round of damage.

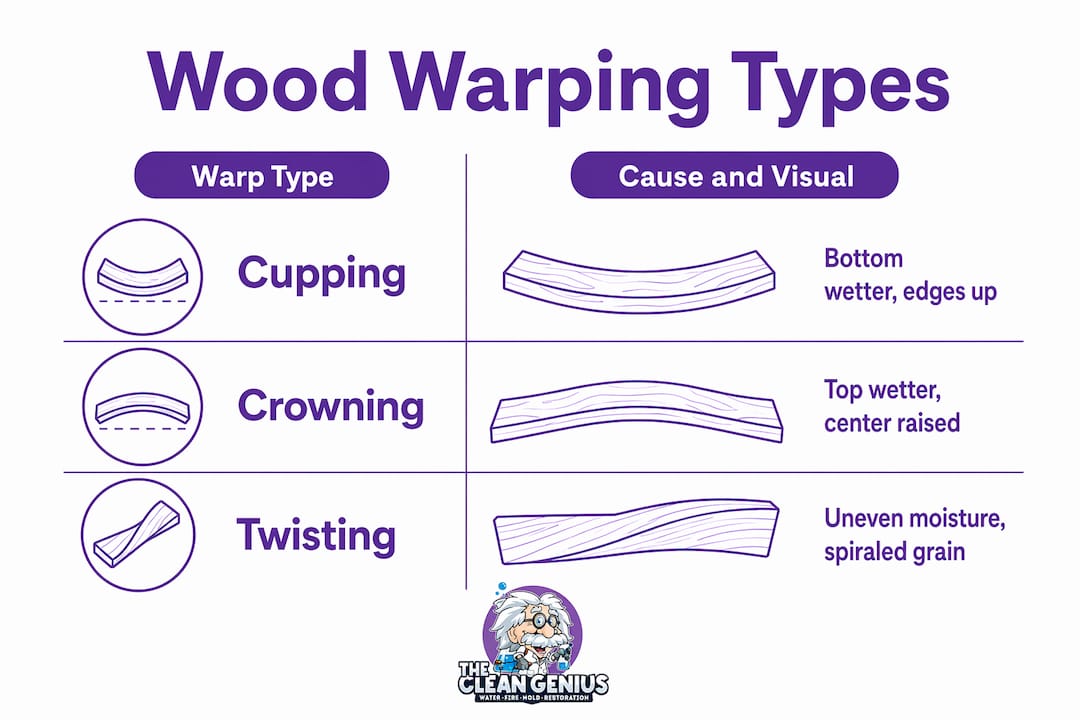

What are the types of wood warping from water damage?
Moisture gradients across a board’s thickness create three distinct warping patterns that homeowners can identify by sight and touch.
| Warp Type | Primary Cause | Visual Sign | Repair Implication |
|---|---|---|---|
| Cupping | Bottom wetter than top | Edges higher than center | Allow full drying before sanding |
| Crowning | Top wetter than bottom, or premature sanding | Center higher than edges | Wait for EMC stabilization |
| Buckling | Expansion exceeds floor gap | Boards lift off subfloor | Often requires board replacement |
Cupping is the most common pattern after flooding or a slow subfloor leak. The bottom of the board absorbs water from the subfloor while the top stays relatively dry. The wet bottom swells, pushing the edges upward. You can feel the ridges when you walk across the floor in socks.
Crowning is the opposite shape and often a sign of a repair gone wrong. Sanding a cupped floor before it fully dries removes material from the raised edges. When the board finally dries and the edges shrink back down, the center sits higher than the edges. The floor looks worse after the repair than before.
Buckling signals severe damage. When a floor absorbs so much moisture that expansion exceeds the designed expansion gap around the room’s perimeter, the boards have nowhere to go. They push against each other, pull nails out of the subfloor, and lift several inches off the ground. Severe buckling and delamination indicate irreversible structural damage, meaning replacement rather than refinishing is the only path forward.
Signs homeowners should watch for include:
- Visible gaps between boards that close suddenly after rain or humidity spikes
- Boards that click or feel springy underfoot
- Edges that catch on socks or bare feet when walking
- Visible light gaps under a straightedge laid across the floor
Why quick and controlled drying prevents permanent damage
The 48-hour window after a water event is the single most important factor in whether wood floors can be saved. Acting within that window keeps moisture content from reaching the Fiber Saturation Point and triggering plastic deformation. Delays beyond 48 hours increase the risk of permanent warping and mold growth simultaneously.
Controlled drying follows a specific sequence:
- Remove standing water immediately. Every hour of contact increases moisture penetration depth. Use wet vacuums or extraction equipment to pull surface water before it migrates into the subfloor.
- Set up industrial dehumidifiers. Household dehumidifiers lack the capacity for structural drying. Professional units pull moisture from the air and accelerate evaporation from the wood surface without overheating it.
- Monitor moisture content daily. Controlled drying follows a logarithmic curve guided by moisture meter readings. Drying too fast causes case hardening, where the surface dries and seals while internal moisture stays trapped, leading to cracking.
- Maintain room humidity between 35–55%. This range keeps the EMC in the safe zone and prevents the wood from absorbing moisture back from the air as it dries.
- Do not sand or seal until moisture readings stabilize. Refinishing costs $3–$8 per square foot. Full replacement runs $12–$18 per square foot. Waiting for stable moisture content protects that investment.
Pro Tip: Place drying mats directly on wet hardwood floors. These industrial mats create a sealed drying zone that pulls moisture upward through the boards, drying from the bottom up and reducing the moisture gradient that causes cupping.
Wood retains internal moisture long after the surface feels dry. This is the hysteresis effect in practice. A floor that feels firm and dry after three days may still read 18–20% moisture content at depth. Sealing that floor traps the remaining moisture inside, and the warping process continues underneath the new finish.
How to prevent wood warping from water damage
Prevention relies on controlling moisture before it reaches the wood’s cell walls. These steps address the most common water intrusion points in residential homes:
- Respond within 1–48 hours. The faster standing water is removed, the shallower the moisture penetration. Common intrusion points include under sinks, behind dishwashers, pet water bowls, and crawl spaces.
- Maintain indoor humidity at 35–55%. Use a whole-home dehumidifier or HVAC humidity controls. A 70-pint dehumidifier handles most residential spaces effectively.
- Inspect appliances regularly. Dishwashers, refrigerators with ice makers, and washing machines are the leading sources of slow leaks that go undetected for weeks.
- Install moisture barriers in crawl spaces. Vapor barriers under the subfloor block ground moisture from migrating upward into hardwood flooring.
- Avoid wet mopping hardwood floors. A damp mop is fine. Standing water from a wet mop soaks into seams and starts the absorption cycle.
- Use moisture meters for ongoing monitoring. A reading above 12–13% in hardwood floors warrants investigation before visible symptoms appear.
- Follow emergency response steps immediately after any water event by reviewing emergency response steps to avoid missing critical early actions.
For persistent moisture problems, especially in basements or homes with crawl spaces, consulting a professional with structural drying equipment is the most reliable path. The cost of professional drying is a fraction of full floor replacement.
Key Takeaways
Water damage causes wood warping because uneven moisture absorption creates internal stress that permanently deforms wood fibers when the Fiber Saturation Point is exceeded.
| Point | Details |
|---|---|
| Act within 48 hours | Delays beyond 48 hours increase permanent warping risk and mold growth significantly. |
| Know your moisture thresholds | Hardwood above 15% moisture content begins cupping; above 20% reaches the Fiber Saturation Point. |
| Never sand before drying | Sanding a cupped floor before it dries causes crowning, a harder-to-fix secondary deformation. |
| Control humidity at 35–55% | Keeping indoor humidity in this range maintains safe EMC and prevents moisture reabsorption during drying. |
| Hysteresis means surface dry is not structurally dry | Use a moisture meter at depth to confirm true dryness before refinishing. |
What I’ve learned after years of watching homeowners get this wrong
The 48-hour window sounds like a guideline. After seeing hundreds of water damage jobs across Chicagoland, I can tell you it functions more like a deadline. Homeowners who call us within the first few hours almost always save their floors. Homeowners who wait three or four days because the floor “looks okay” almost always face replacement.
The second mistake I see constantly is premature sanding. A cupped floor looks terrible, and the instinct is to flatten it immediately. But sanding a wet floor removes the raised edges. When the wood finally dries and those edges drop, the center crowns up and the floor looks worse than before the repair. Patience during the drying phase is genuinely the hardest part of wood restoration, and it’s where most DIY attempts fail.
The third issue is trusting surface feel over measurement. Wood that feels dry underfoot can still read 18% moisture content at depth. That trapped moisture will continue warping the floor after you refinish it. A moisture meter is a $30–$50 tool that eliminates all the guesswork. Every homeowner with hardwood floors should own one.
What can actually be saved? Cupped floors that are caught early and dried properly can often be refinished with excellent results. Buckled floors with pulled nails and delaminated boards typically require replacement. The line between restoration and replacement is almost always determined by how fast the homeowner responded and whether the drying was done correctly. You can review successful restoration examples to get a realistic sense of what professional intervention can achieve.
— Jim
Thecleangenius can protect your floors before damage becomes permanent
Water damage moves fast. The difference between a refinished floor and a full replacement often comes down to the first 24 hours.
Thecleangenius provides 24/7 emergency water damage restoration across Chicagoland, with certified teams that use industrial dehumidifiers, moisture monitoring equipment, and controlled drying protocols to save hardwood floors that other services write off. With over 25 years of combined experience and more than 400 five-star reviews, Thecleangenius works directly with your insurance to make the process as straightforward as possible. If your floors are showing signs of cupping, crowning, or buckling, call Thecleangenius now. The sooner the drying starts, the better the outcome.
FAQ
Why does water make wood warp instead of just swelling evenly?
Wood is anisotropic, meaning it expands at different rates across different grain directions. Uneven moisture absorption across a board’s thickness creates a moisture gradient that forces one side to swell more than the other, bending the board.
Can humidity alone cause wood warping without a flood or leak?
Yes. Sustained indoor humidity above 55% raises wood’s EMC above safe thresholds over time, causing gradual cupping or crowning without any single water event. Maintaining humidity at 35–55% prevents this.
How long does wood take to dry after water damage?
Drying time depends on wood species, thickness, and moisture levels, but professional controlled drying typically takes 3–7 days. Surface dryness is not a reliable indicator. Moisture meter readings at depth must confirm stabilization before refinishing.
Is cupped hardwood always replaceable, or can it be saved?
Cupped hardwood caught within 48 hours and dried properly can often be sanded and refinished successfully. Floors that have reached the Fiber Saturation Point or show buckling with pulled nails typically require board replacement.
What moisture content is safe for hardwood floors before refinishing?
Hardwood floors should read below 12–13% moisture content at depth before sanding or sealing. Refinishing above that threshold traps internal moisture and causes secondary warping under the new finish.
